Dove tail guiding
Applied in: Mechanical Engineering | Other
- Previous
- Next
Problem, idea and solution
-
Problem

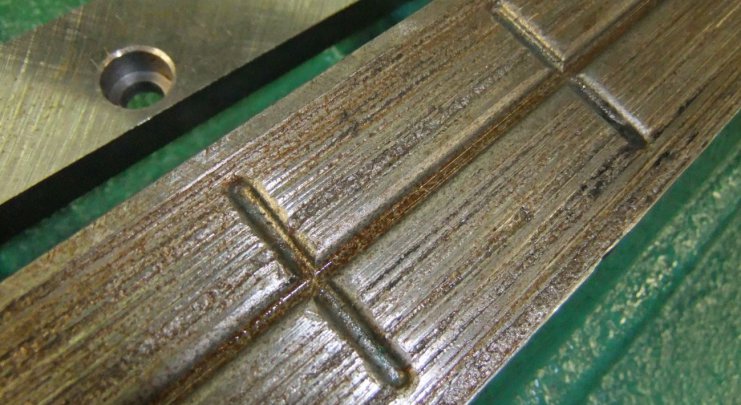

The double dovetail guiding of a milling machine was completely worn.
-
Solution

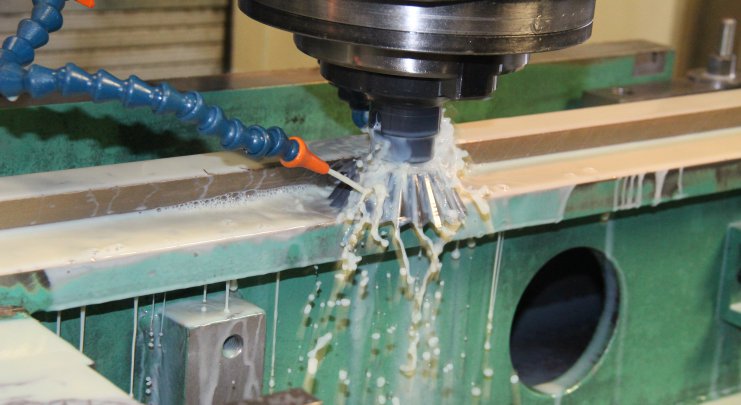

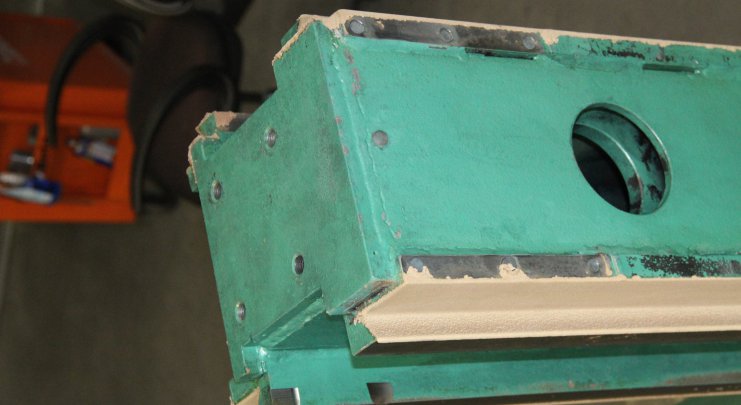

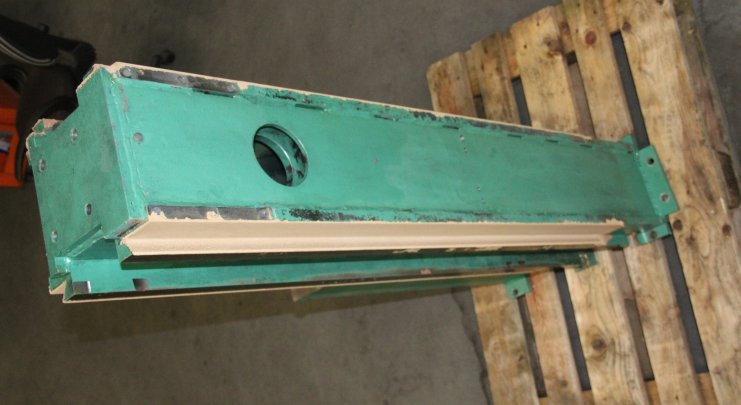

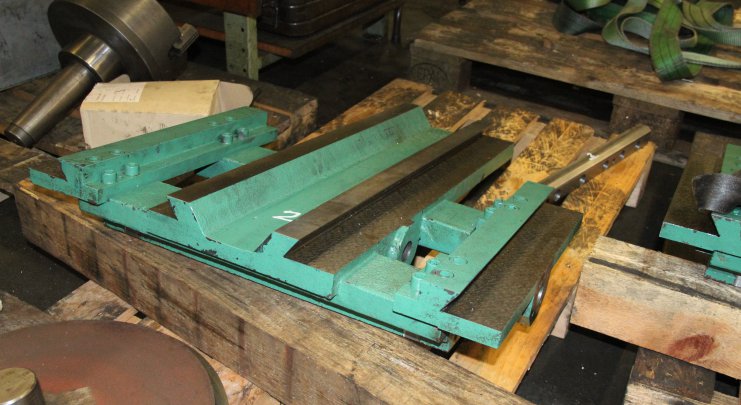

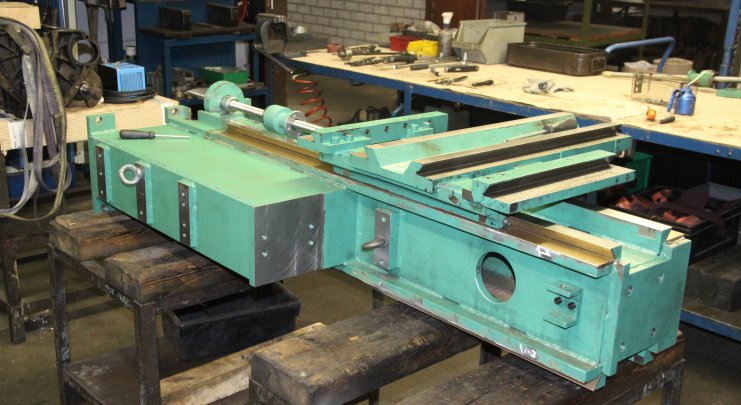

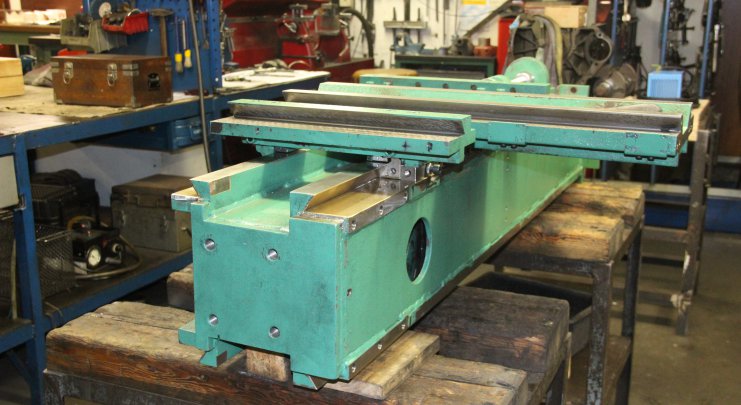

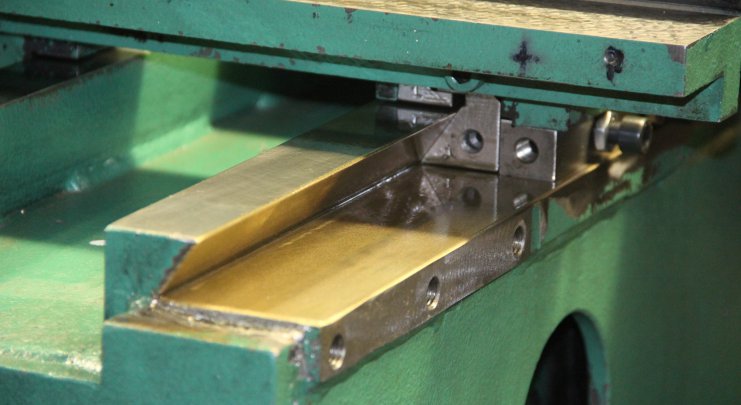

Revamo has repaired the guiding by milling the worn out of the carriages and thermal spaying of the stationary guiding. Afterwarts the coating has been milled to the right fit.
-
Abrasive wear
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): 1.500x600x300mm | Base material: 0.6025 (GG25) | Coating: Bronze |
