Plain bearing shells white metal
Applied in: Pump Industry | Mechanical Engineering
Problem, idea and solution

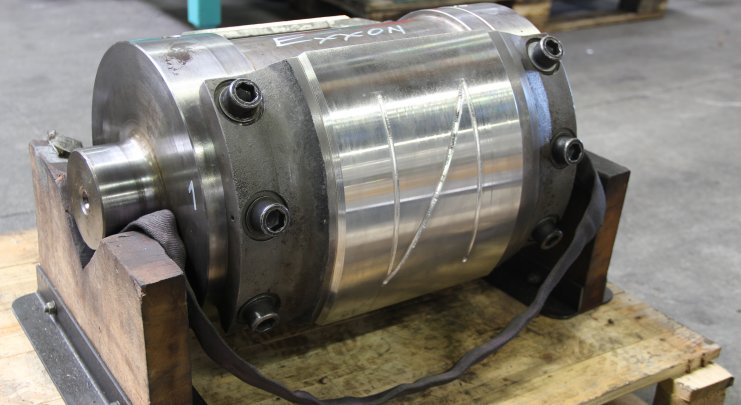

These plain bearing shells come out of a cross head of a compressor.

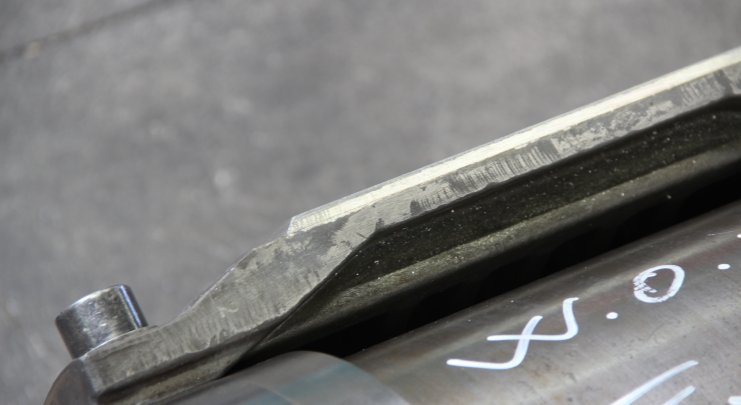

White metal is worn.
An "emergency running layer" is desired under the white metal.

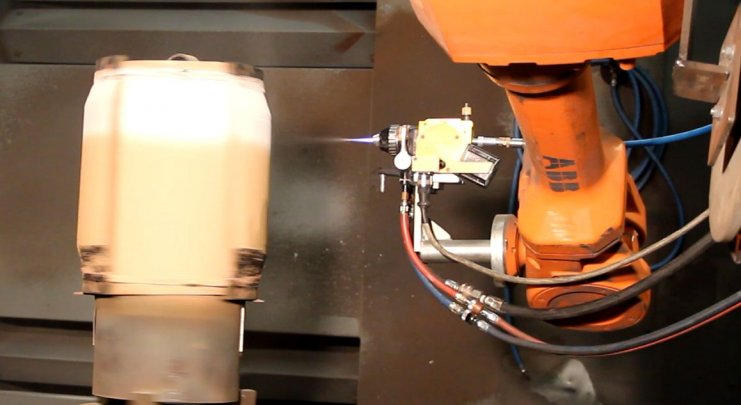

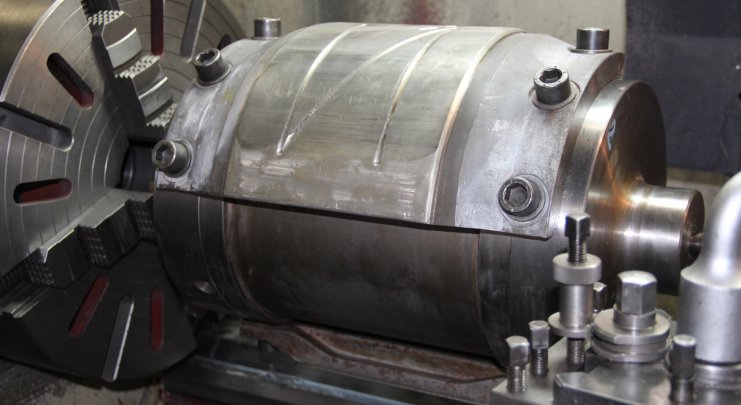

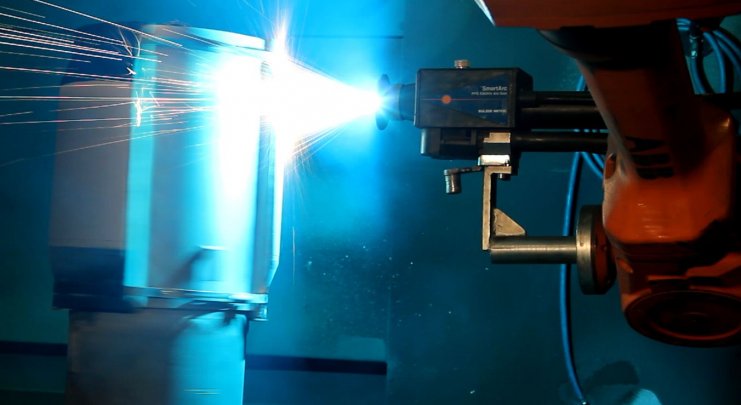

Revamo repaired the plain bearing shells by flame spraying, turning and boring.

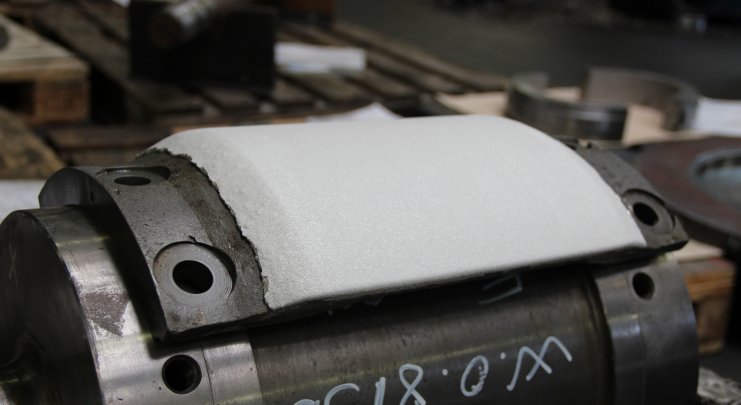

An "emergency running layer" of bronze was sprayed with white metal.
Bearing fitting wear
A type of wear caused by insufficient lubrication or over-loading.
Wear deformation caused by surfaces or particles rubbing on one another. The abrasive is made up of a hard and/or sharp...
|Principle dimensions (LxWxH): Ø410x240mm||Base material: 0.6040 (GG40)||Coating: Bronze / White metal (= babbit)|
