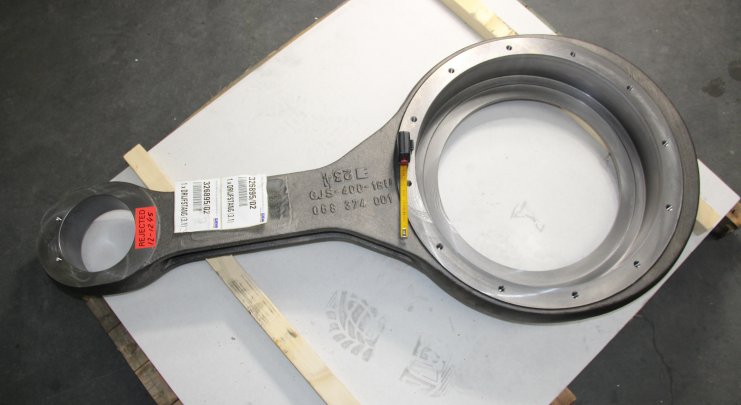

Connecting rod
Applied in: Pump Industry | Mechanical Engineering
- Previous
- Next
Problem, idea and solution
-
Problem

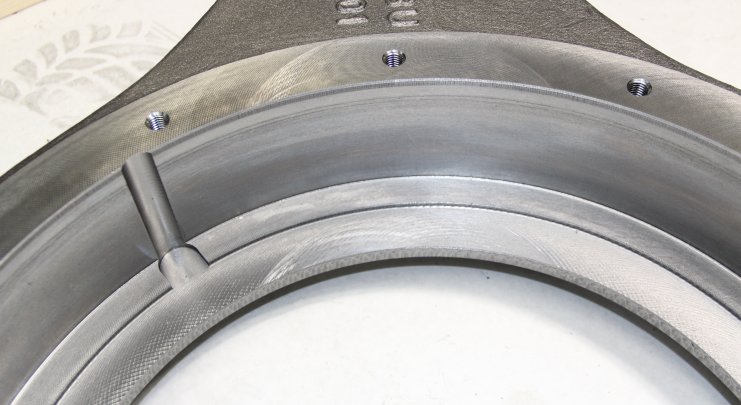

Because of a machining error, the bearing fitting of this connecting rod is 0.03 mm out of tolerance.
Given the delivery time, casting a new connecting rod is not an option.
-
Solution

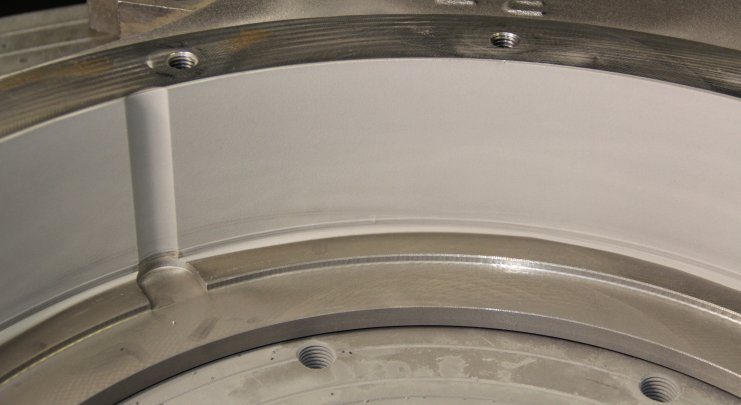

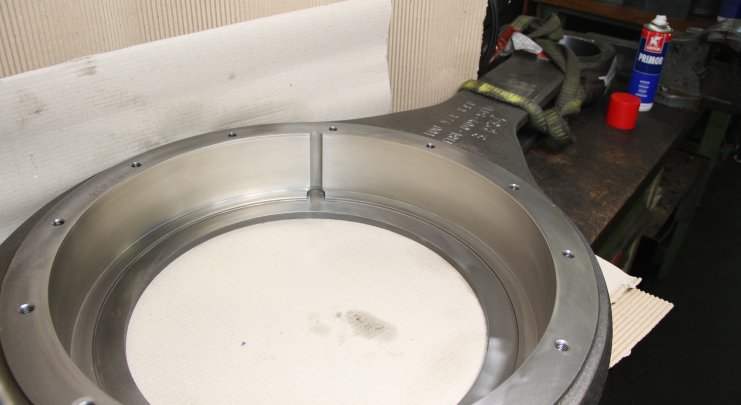

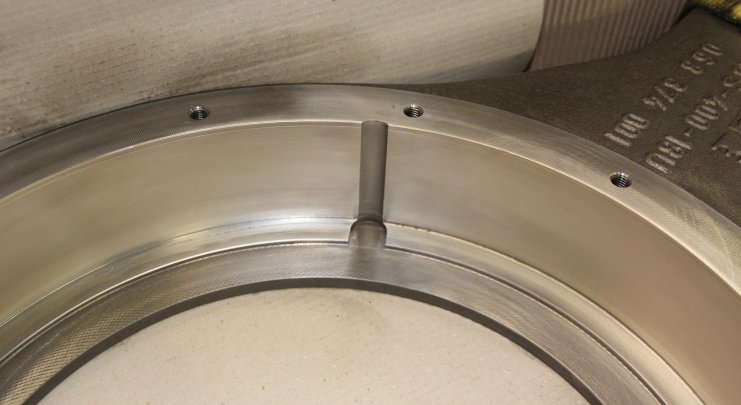

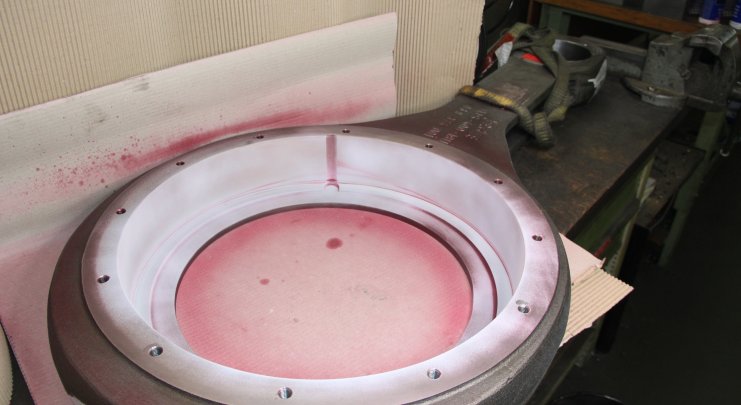

Revamo repaired the bearing fitting of this new connecting rod by flame spraying and boring. At the final inspection, a penetrant crack test was carried out.
-
Dimensional recovery
Every type of wear requires dimensional recovery. Dimensional recovery is also required when a design or machining error...
Specifications
| Principle dimensions (LxWxH): 1.309x600x100mm | Base material: 0.7040 (GGG40) | Coating: NiAl |
